Round Duct Lock Forming Machine: Precision Engineering for Efficient Duct Assembly

Round Duct Lock Forming Machine: Precision Engineering for Efficient Duct Assembly

In the HVAC industry, the assembly of ductwork requires precision and efficiency to ensure optimal performance and reliability.

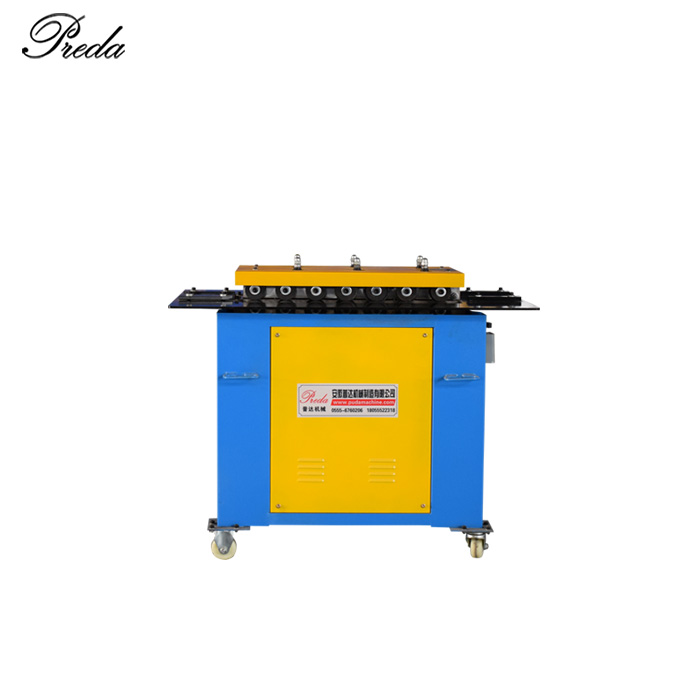

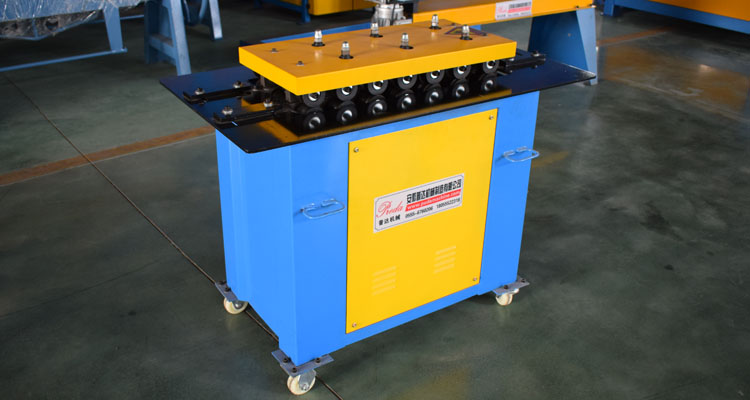

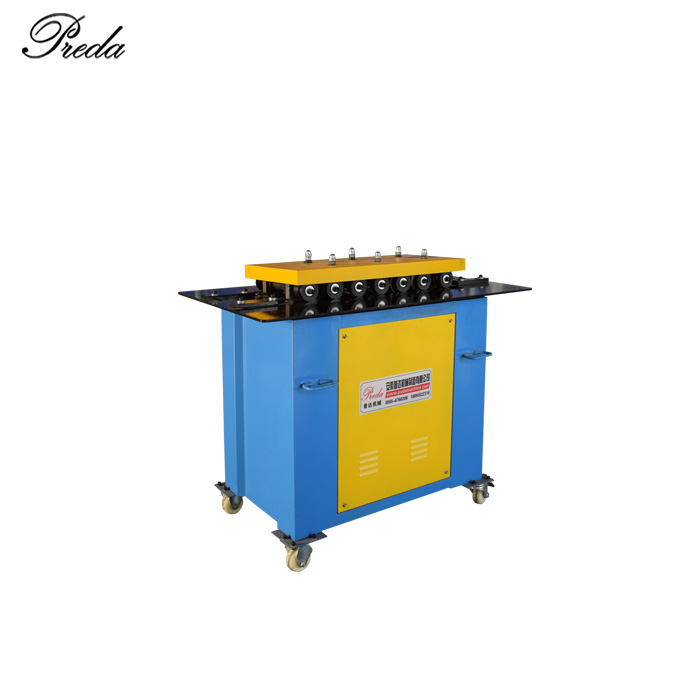

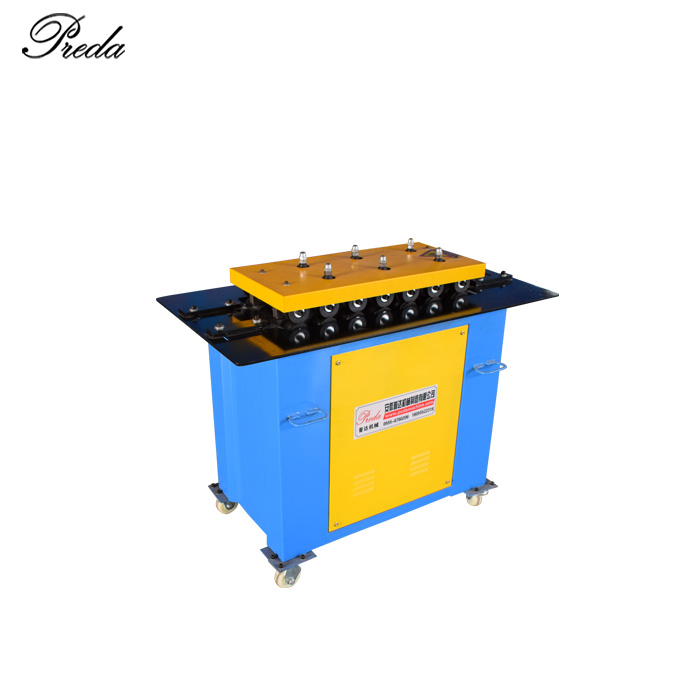

The Round Duct Lock Forming Machine, specifically the Lockformer Button Punch Snap Lock Seam Roll Former,

is designed to streamline the ductwork assembly process by providing a robust solution for forming reliable and secure seams in round duct systems.

Overview of the Round Duct Lock Forming Machine

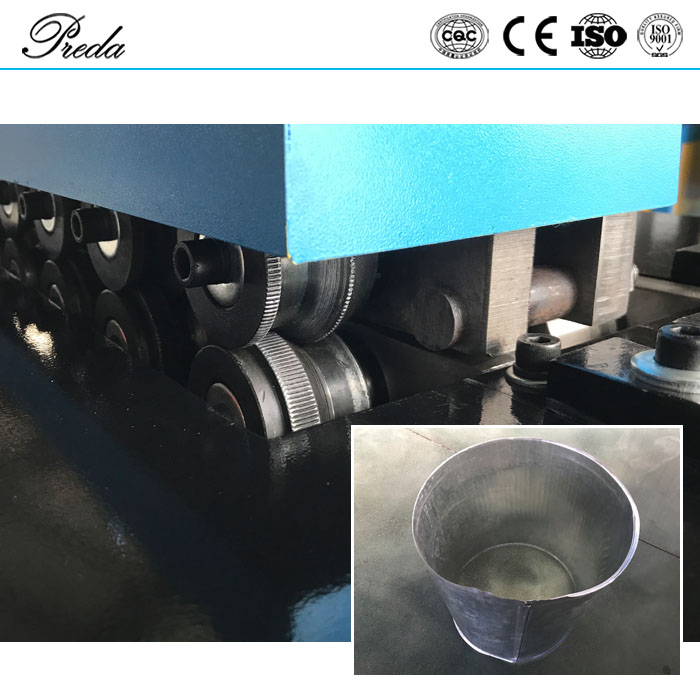

The Lockformer Button Punch Snap Lock Seam Roll Former is engineered to form a two-piece seam that simplifies the assembly of round ducts.

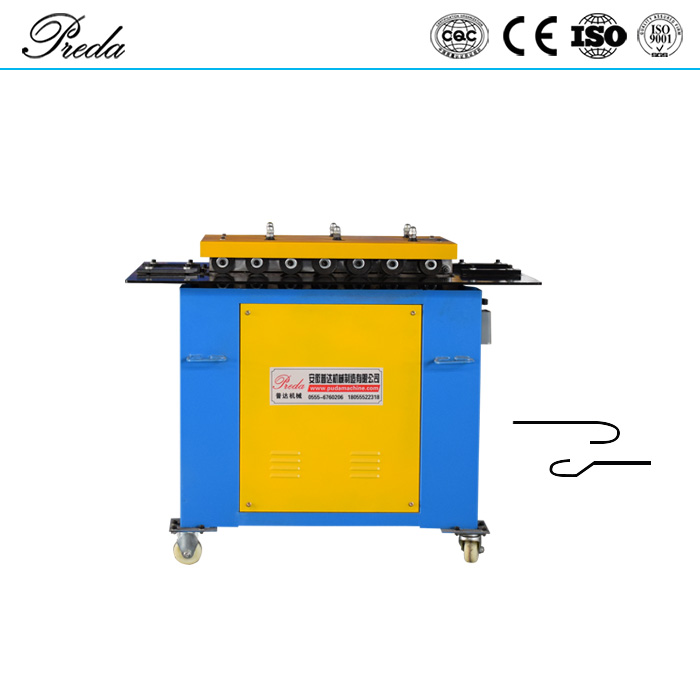

The innovative design features a male seam that creates a button and a female seam that produces a lock.

These interlocking components snap together to create flush corners, enhancing the functionality and aesthetics of duct installations.

Key Features of the Round Duct Lock Forming Machine

1.Two-Piece Seam Design:

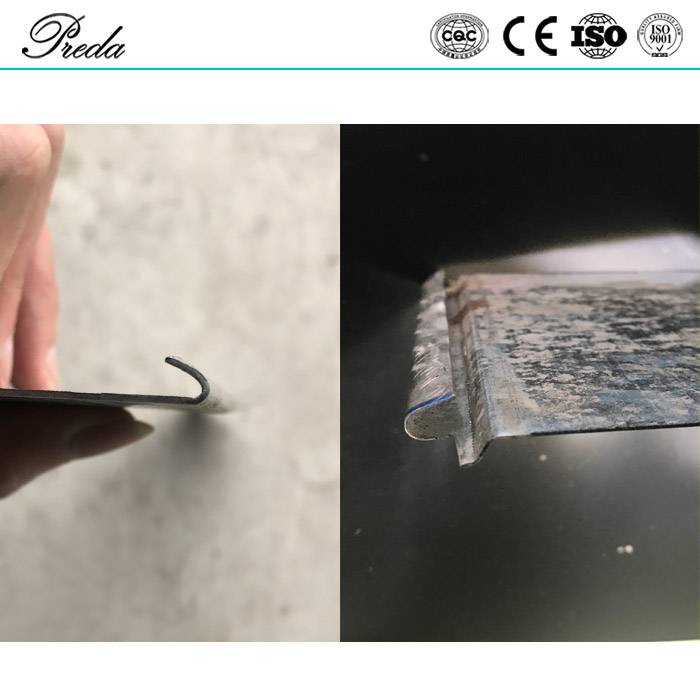

The machine forms a male (button) seam and a female (lock) seam that fit securely together.

This design not only improves the strength of the duct connections but also minimizes the risk of air leaks,

ensuring efficient airflow throughout the HVAC system.

2.Versatile Metal Gauge Capabilities:

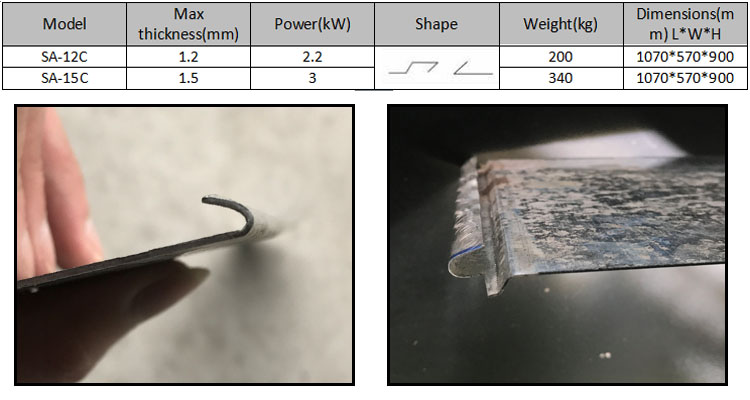

The Lockformer can efficiently form sheet metal ranging from 20 to 26 gauge, making it suitable for various material types used in duct fabrication.

This flexibility allows manufacturers to adapt to different project requirements easily.

3.High-Speed Production:

Operating at speeds of 60 to 65 feet per minute, the Round Duct Lock Forming Machine significantly improves productivity,

allowing manufacturers to complete large runs of ductwork efficiently.

This speed results in shorter lead times and helps meet tight deadlines.

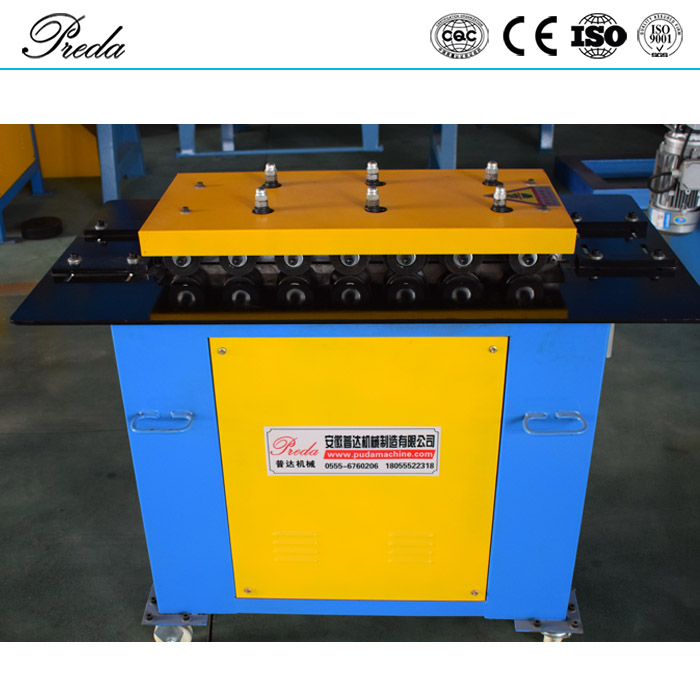

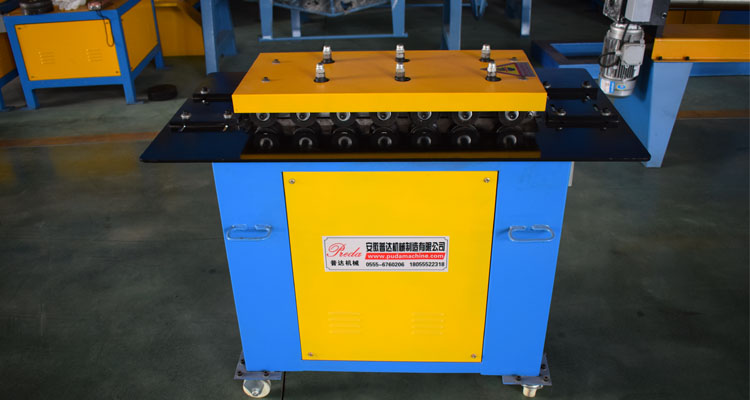

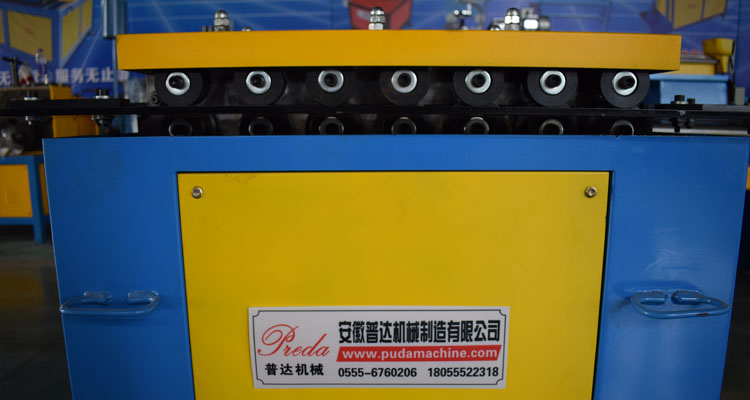

4.Multiple Forming Stations:

Available in both seven and nine forming station configurations, this machine provides enhanced production flexibility.

Increased forming stations allow for more intricate seam designs and improve the overall quality of the finished products.

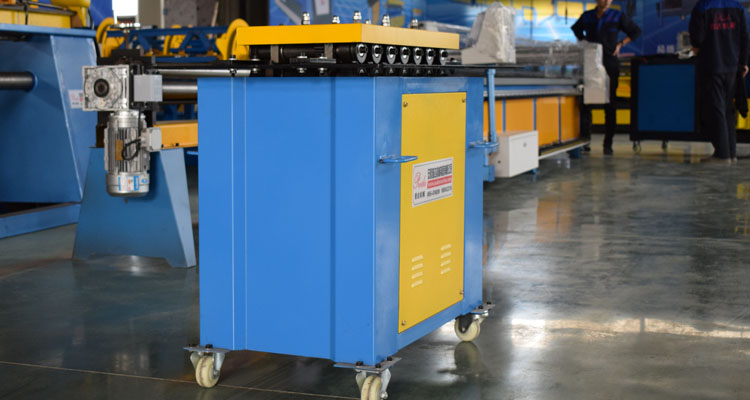

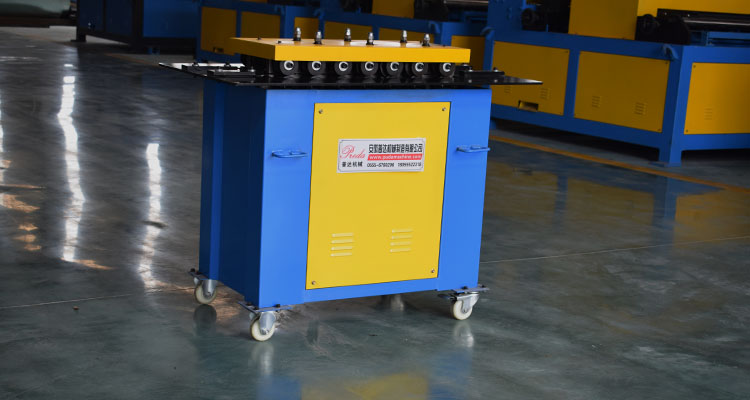

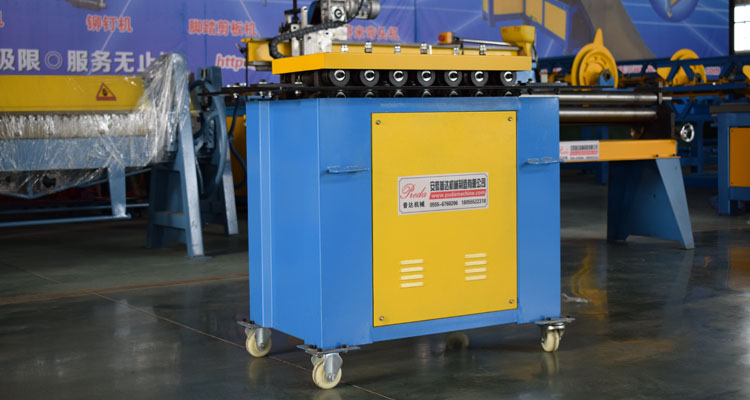

5.Compact and Efficient Design:

The compact design of the Lockformer simplifies the integration of this machine into existing production lines.

Its ability to produce duct seams quickly makes it an indispensable asset for any duct fabrication facility.

6.Durable Construction:

Built with Lockformer’s renowned quality, this machine features industrial-grade motors,

high precision needle-type bearings for smooth operation, and a heavy-duty 3/4-inch chassis plate.

It also utilizes case-hardened and ground roll shafts and arc-welded steel stands, ensuring longevity and reliability even in demanding environments.

7.Ease of Maintenance:

Access to alternate fittings is made simple with the main transmission bearing lubrication panel,

allowing for easy maintenance and ensuring that the machine operates at peak efficiency.

Benefits of the Round Duct Lock Forming Machine

•Increased Assembly Efficiency:

The design of the two-piece lock allows these connections to be assembled twice as fast as traditional methods.

This increased speed translates to significant labor savings and improved workflow.

•Enhanced Transportability:

Due to the way the two pieces nest together, the formed ducts are easier to transport to job sites.

This feature is especially beneficial for minimizing the risk of damage during handling and transportation.

•Superior Performance and Reliability:

With a commitment to quality construction, the Round Duct Lock Forming Machine delivers reliable performance,

capable of producing consistent and high-quality duct seams that meet stringent industry standards.

The Round Duct Lock Forming Machine, particularly the Lockformer Button Punch Snap Lock Seam Roll Former,

stands as a critical piece of equipment in the HVAC duct manufacturing process.

Its advanced features, including high-speed production, versatile metal gauge capabilities, and ease of maintenance,

make it an invaluable tool for manufacturers seeking to enhance their duct fabrication operations.

Investing in a Round Duct Lock Forming Machine not only increases production efficiency

but also ensures the creation of high-quality ductwork that meets the challenges of modern construction projects.

Experience the benefits of cutting-edge seam forming technology with Preda Machine and elevate your duct manufacturing capabilities to new heights!
