Differences Between TDF and TDC Flange Forming Machines

TDF Flange Forming Machine: Essential Equipment for Secure Duct Connections

-Differences Between TDF and TDC Flange Forming Machines

In the HVAC industry, flange forming machines play a crucial role in the fabrication of duct systems,

enabling manufacturers to create reliable connections between duct sections.

Among the most significant innovations in flange forming technology are TDF (Table Duct Flange) forming machines,

which are distinct from TDC (Table Duct Connection) type machines.

Understanding the differences between these two types of flange forming equipment

is essential for duct manufacturers seeking to improve efficiency and quality in their operations.

Overview of TDF Flange Forming Machines

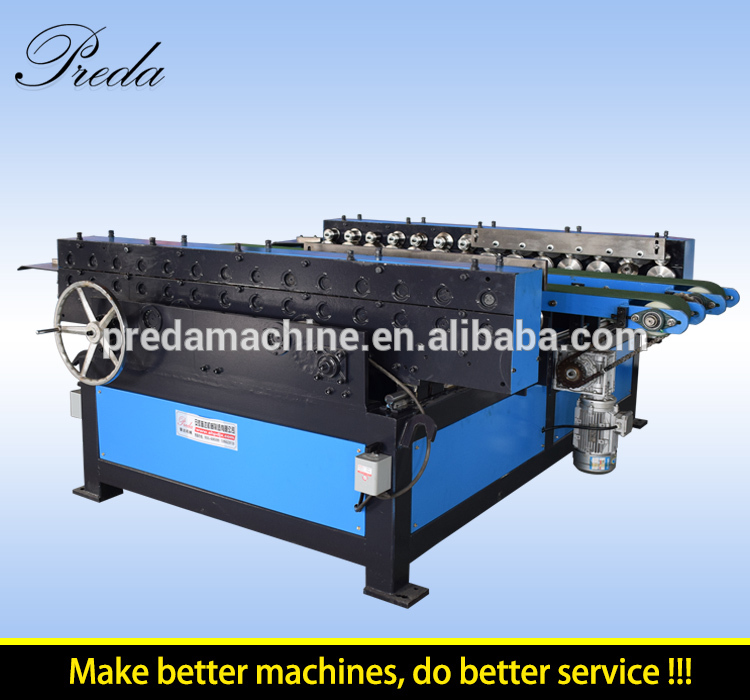

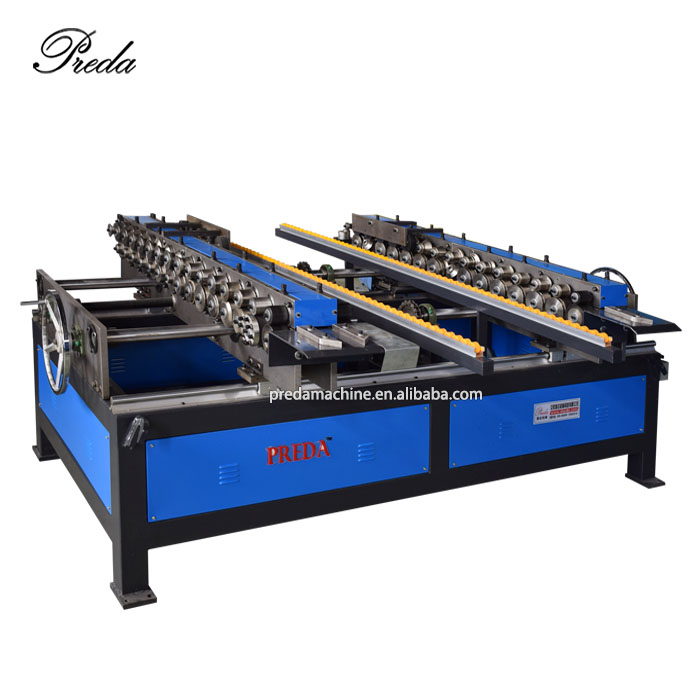

The TDF flange forming machine is specifically designed to produce flanges that are used in ductwork,

allowing manufacturers to create flanged edges that facilitate quick and secure assembly.

These machines are engineered for high precision and reliability, ensuring that flanges fit together snugly and minimize air leakage in HVAC systems.

Key Features of TDF Flange Forming Machines:

1.Single-Sided Flanging:

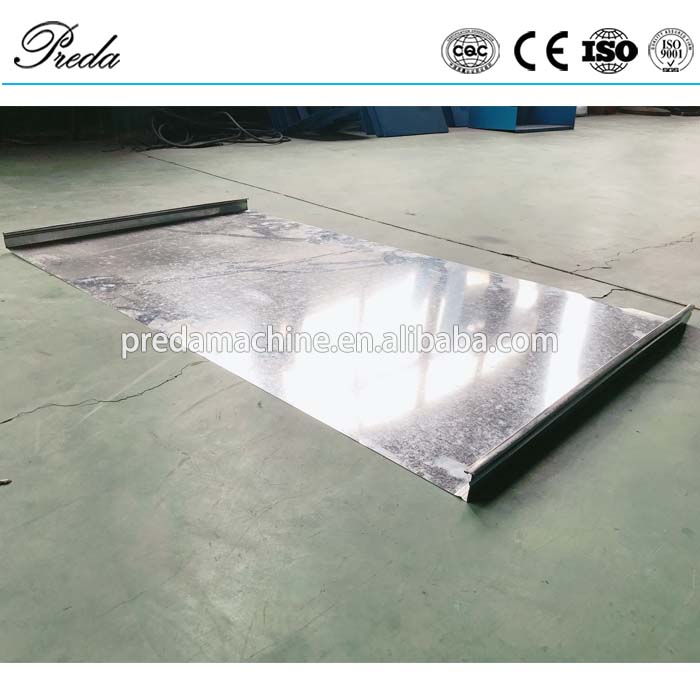

The TDF flange forming machine typically produces the flange shape on one side of the ductwork while allowing for features such as clips on the opposite side.

2. This design simplifies the assembly process and ensures a secure connection between sections.

3.Simplified Installation:

TDF flanges are designed to be easier to install than their TDC counterparts.

4. The TDF system is specifically engineered to create a locking seam that securely fits together, which reduces the number of additional components required for assembly.

5.Material Versatility:

TDF flange forming machines can handle various materials, including galvanized steel, aluminum, and stainless steel.

6. This adaptability makes them suitable for a wide range of HVAC applications.

7.Integrated Functionality:

Many TDF flange forming machines can work in tandem with other equipment in a duct fabrication line, such as lock forming machines and pneumatic sheet metal folding machines.

8. This integration enhances workflow efficiency and productivity in manufacturing operations.

9.Configuration Options:

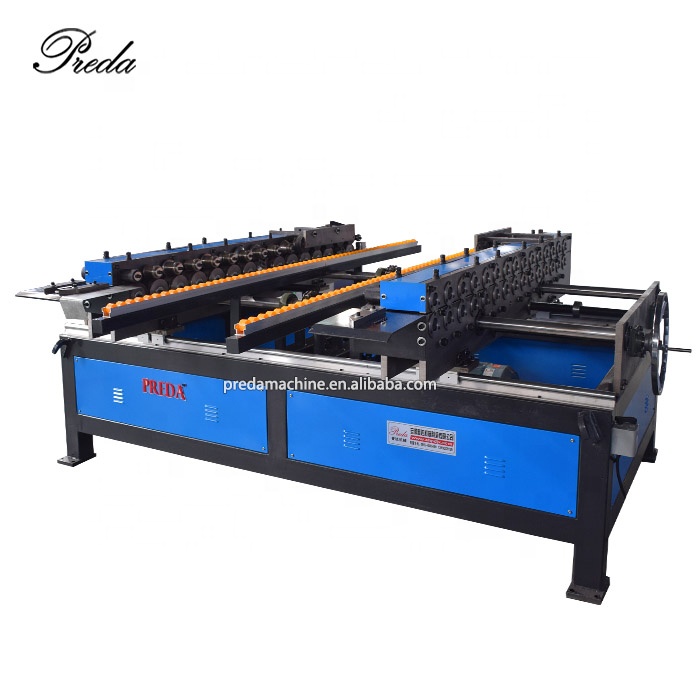

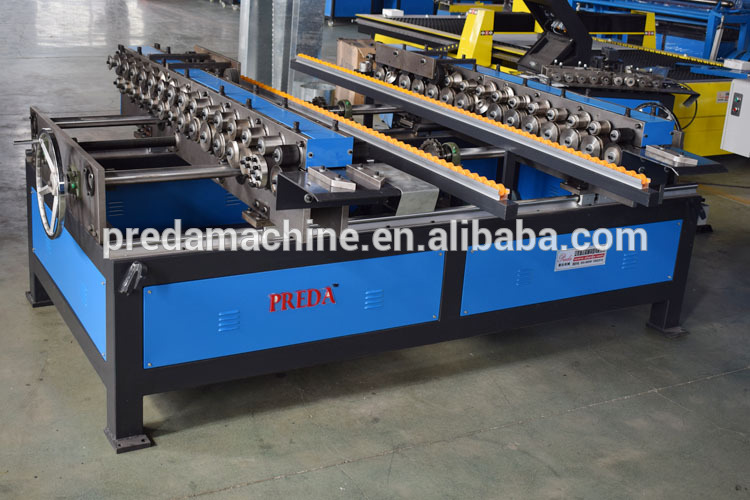

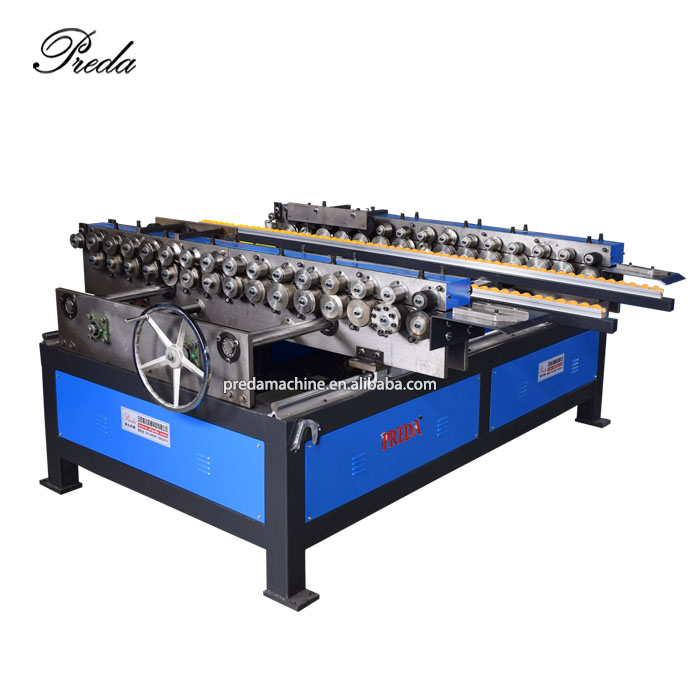

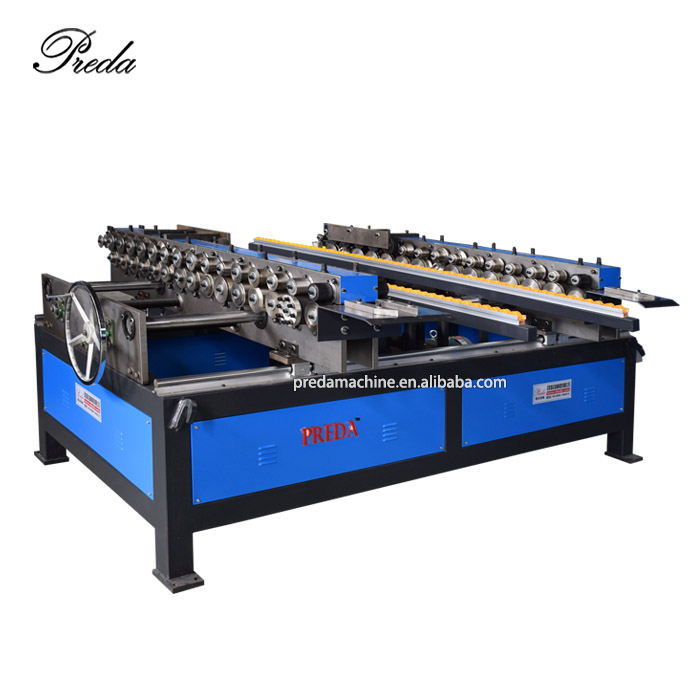

TDF flange forming machines are often available in different configurations, including single and duplex models, allowing manufacturers to choose the best solution for their production needs.

10. Duplex models can produce flanges on both sides of the duct simultaneously, maximizing output efficiency.

Differences Between TDF and TDC Flange Forming Machines

Understanding the differences between TDF and TDC flange forming machines is critical for selecting the right equipment for specific duct fabrication processes.

1.Flange Shape and Design:

oTDF Flanges: The TDF flange features a straight flange that allows for smoother and more straightforward assembly.

o The design facilitates the creation of strong, tight joints with minimal air leakage.

oTDC Flanges: TDC flanges, in contrast, typically include a slightly different profile that allows for a two-piece assembly with an external locking seam, which can require more handling during installation.

2.Ease of Use:

TDF flanges are generally considered easier to use in field applications.

3. The straightforward design of TDF flanges allows duct installers to secure flanged joints quickly and efficiently.

4. TDC methods may involve additional complexity during the installation phase.

5.Meeting Industry Standards:

Both TDF and TDC systems are designed to meet industry standards, but the choice between them often depends on specific project requirements and installation environments.

6. TDF flanges are often preferred for systems where speed and simplicity are paramount.

7.Cost Considerations:

TDF systems can sometimes be more cost-effective due to their simplified installation process and reduced labor requirements.

8. TDC systems, while durable, may incur additional costs related to more complex assembly requirements.

The TDF flange forming machine is an indispensable asset for manufacturers in the HVAC duct fabrication industry.

With its capabilities for creating reliable, easy-to-use flanges, the TDF system provides a strong solution for connecting duct sections seamlessly.

By understanding the differences between TDF and TDC flange forming machines, manufacturers can make informed decisions that enhance efficiency, reduce labor costs, and improve the overall quality of their ductwork.

Investing in a TDF flange forming machine from Preda Machine allows fabricators to optimize their production processes and ensure that their HVAC systems perform effectively in the field.

Experience the advantages of TDF flange technology today and elevate your duct manufacturing capabilities to new heights!
