Hydraulic Elbow Making Machine: Precision and Efficiency in Duct Fabrication

Hydraulic Elbow Making Machine: Precision and Efficiency in Duct Fabrication

In the realm of HVAC duct manufacturing, the ability to create reliable connections between ducts is essential.

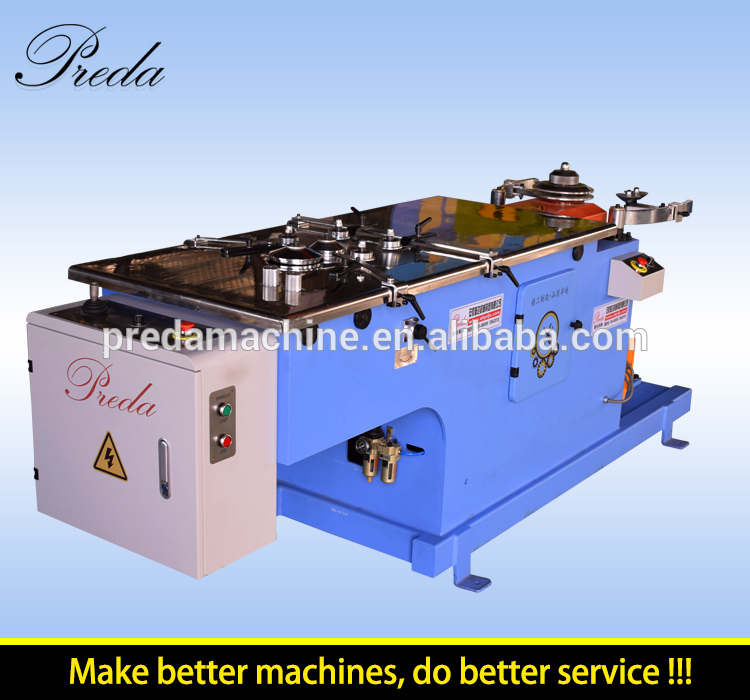

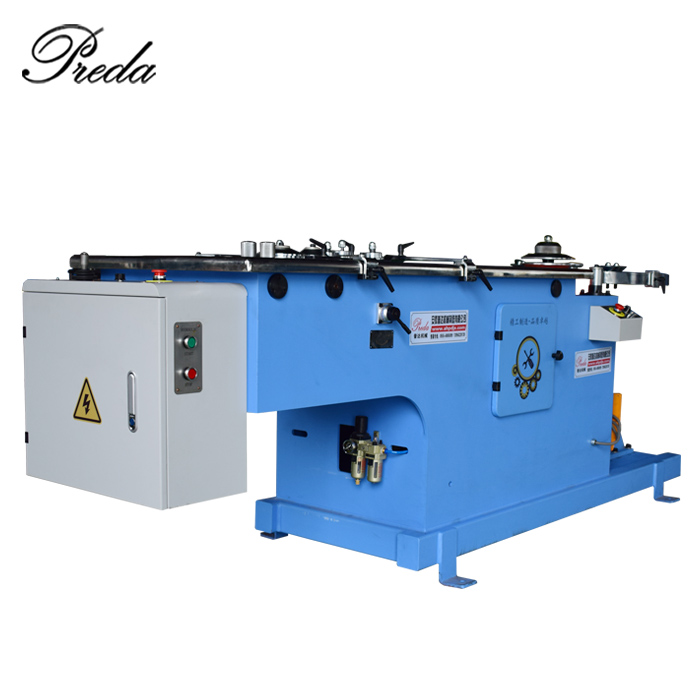

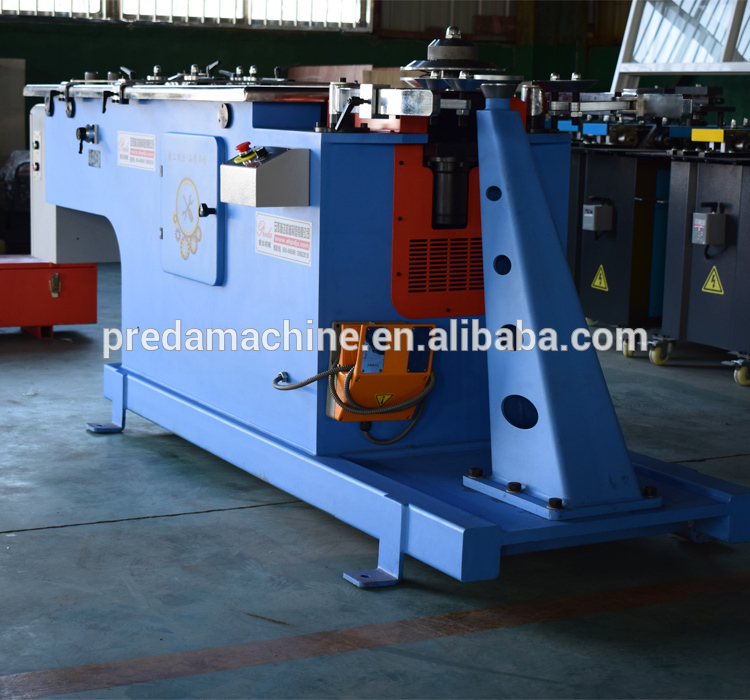

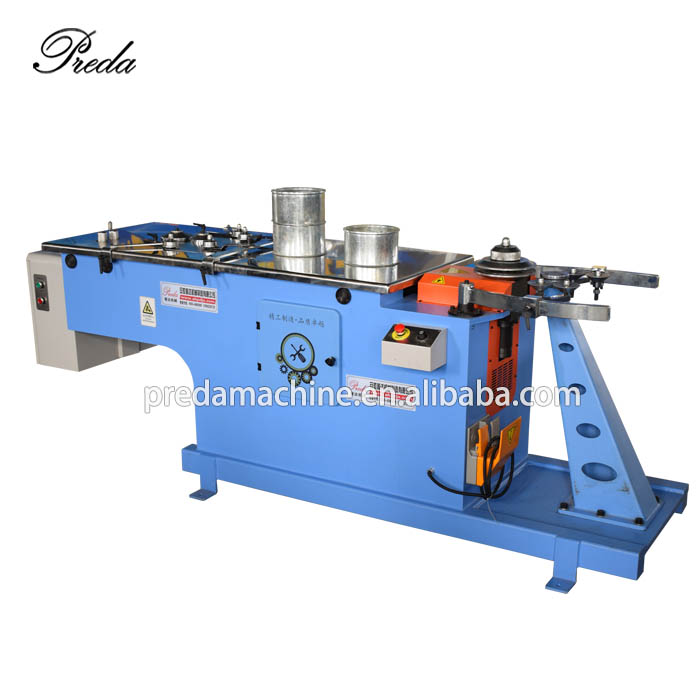

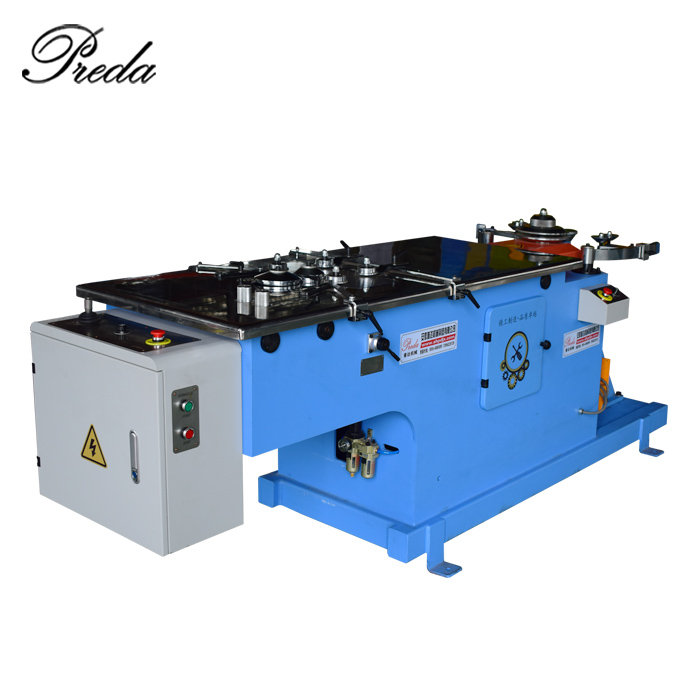

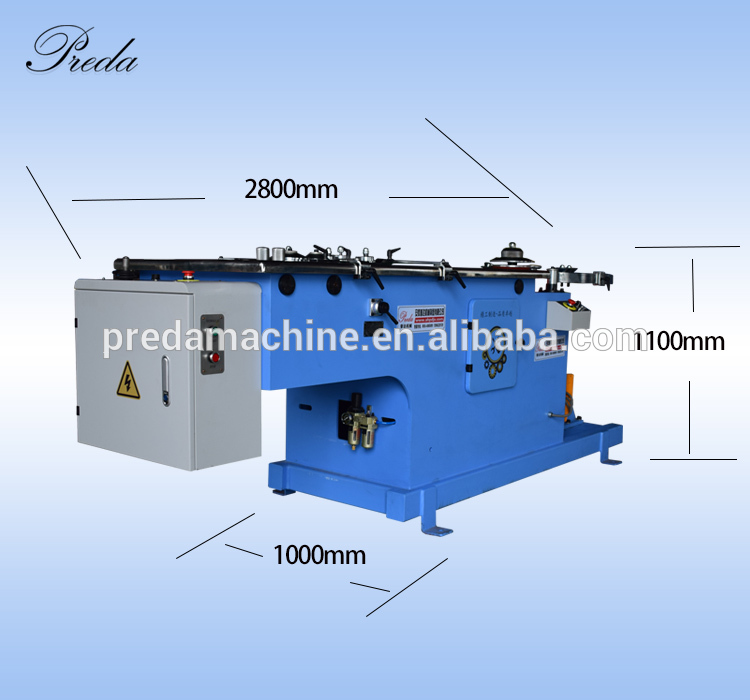

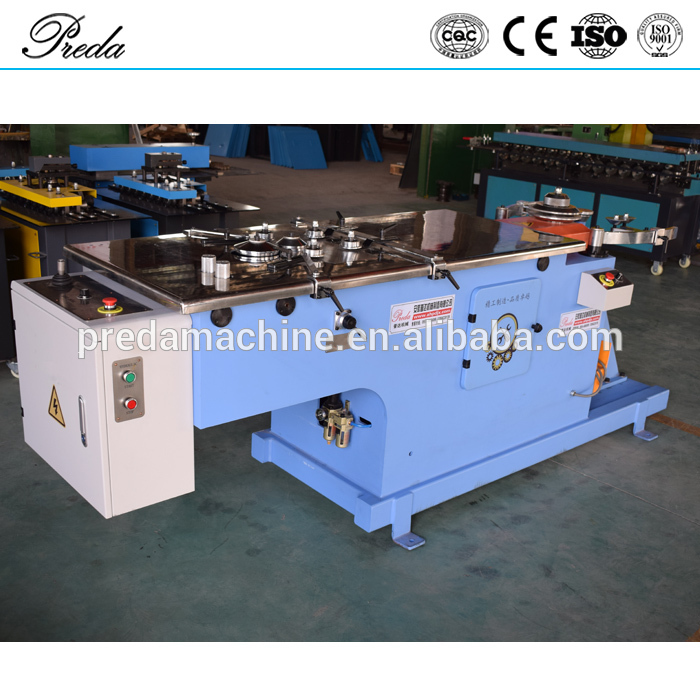

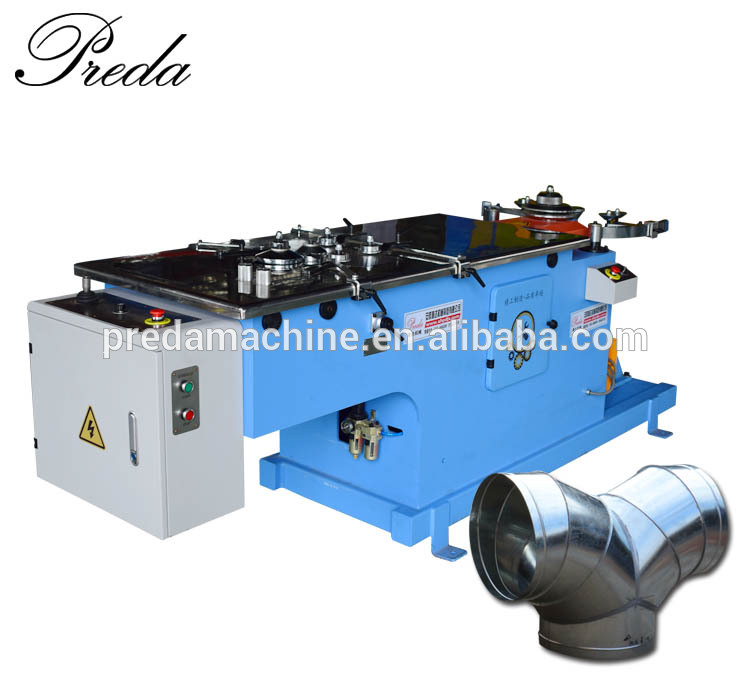

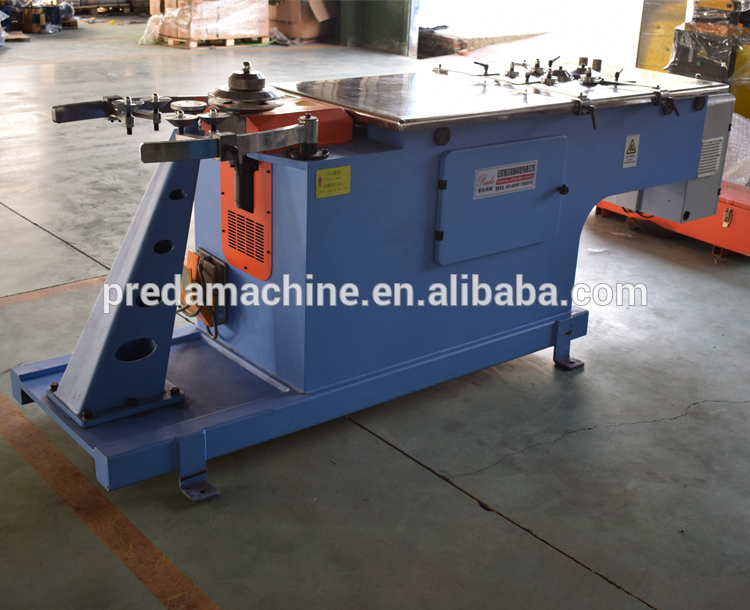

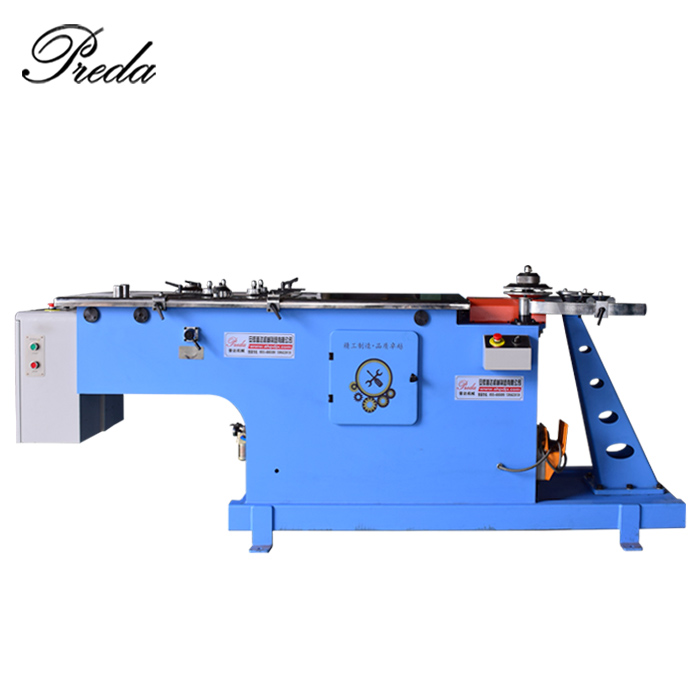

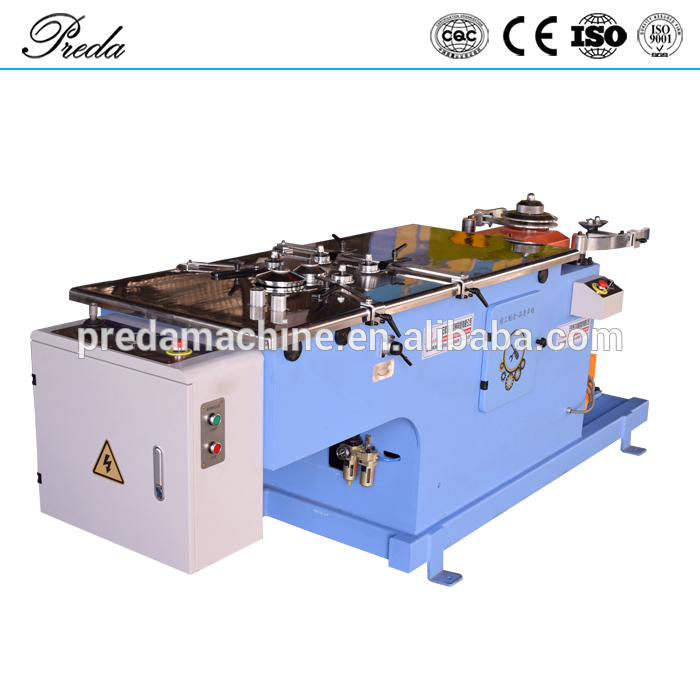

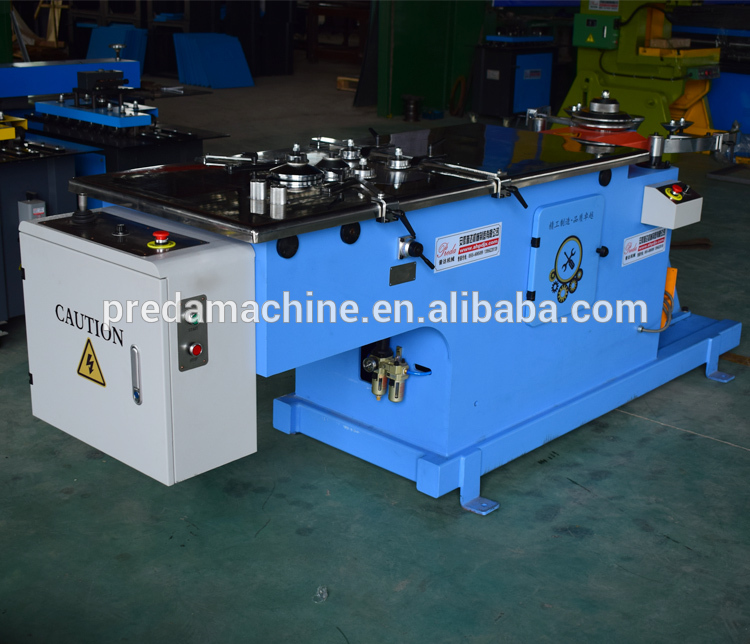

The Hydraulic Elbow Making Machine, also known as the Hydraulic Gore Lock Machine,

stands out as a specialized solution designed to efficiently process 0.4-1.5mm galvanized sheet metal into high-quality elbow joints for round ducts.

This machine not only streamlines the fabrication process but also ensures that every joint is secure and precise.

Key Features of the Hydraulic Elbow Making Machine

1.Specialized Functionality:

This machine is specifically designed for processing galvanized sheets, making it a vital tool in the production of round duct elbow joints.

2. Its ability to handle various thicknesses enhances its versatility in meeting different project requirements.

3.Two Workbenches:

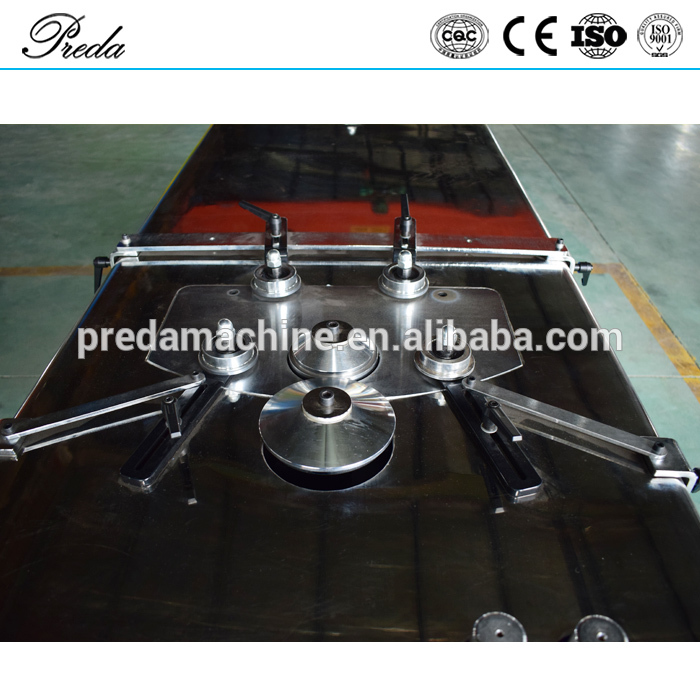

The Hydraulic Elbow Making Machine is equipped with two distinct workbenches.

4. One workbench is dedicated to folding the round sides of the ducts, while the other is utilized for connecting joints and locking seams.

5. This separation of tasks fosters efficiency and allows for simultaneous processing, ultimately speeding up production.

6.Adjustable Height Workbenches:

The adjustable height feature of the workbenches adds convenience for operators, facilitating easy transitions between male and female lock forming.

7. This adaptability enhances usability, allowing operators to work comfortably and efficiently throughout the production process.

8.Hydraulic Power Operation:

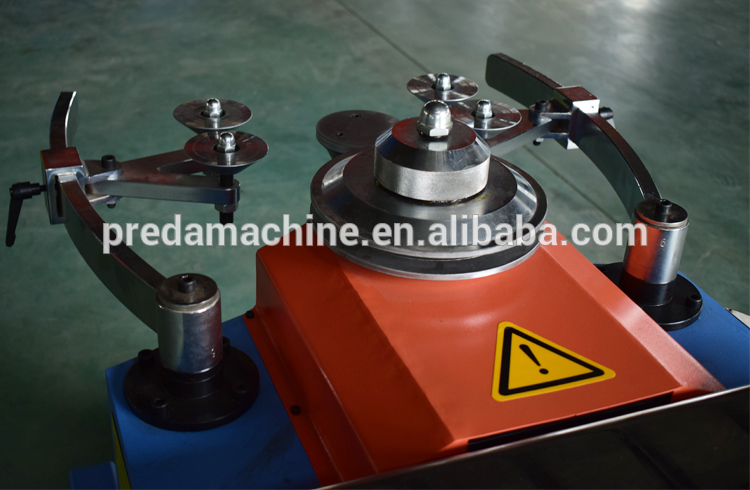

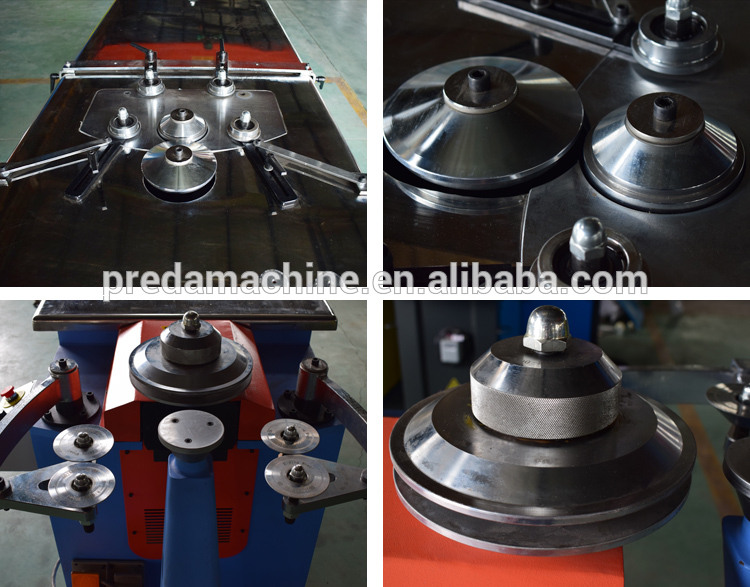

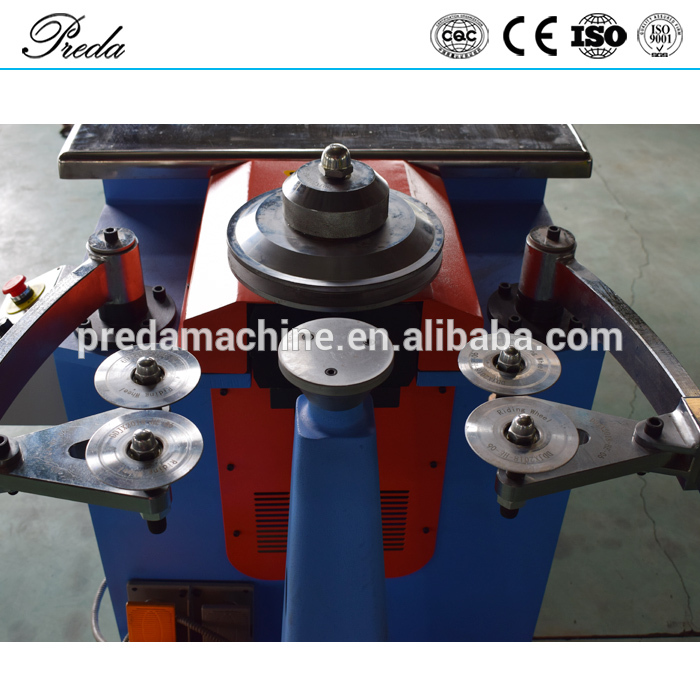

The machine uses hydraulic power to drive the rotation of the rollers, ensuring reliable and consistent performance during operation.

9. The speed of the rollers can be adjusted to accommodate various materials and manufacturing needs, making it a flexible option for different applications.

10.Cylinder-Driven Roller Movement:

The movement of the rollers is managed by a cylinder drive system, which contributes to the machine's stability and efficiency.

11. This design ensures smooth operation while minimizing downtime and maintenance.

Basic Configuration

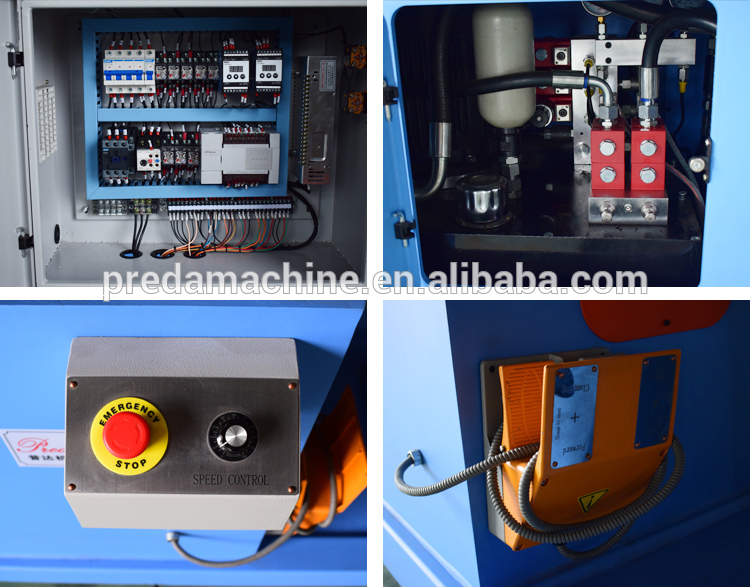

The Hydraulic Elbow Making Machine includes essential components that enhance its functionality and performance:

•One Motor: Powers the entire machine, providing the necessary energy for efficient operation.

•One Electronic Box: Houses the electrical components and systems for streamlined control and operation.

•One Control Electric System: Ensures ease of use and manages the machine's various functions.

•One Cylinder: Drives the movement of the rollers, contributing to precise operation.

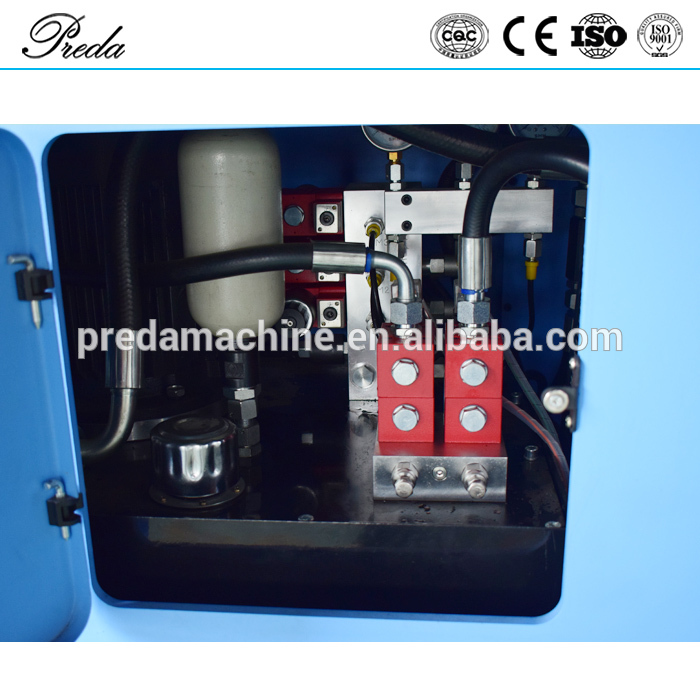

•One Hydraulic System: Provides the necessary force for bending and forming elbows from the sheet material.

•Two Footswitches: Allow for hands-free operation, enhancing safety and convenience for operators.

•Four Pulley System: Facilitates smooth movement and stability during the elbow forming process.

•One Mold: Custom-designed for creating specific elbow shapes and dimensions.

Conclusion

The Hydraulic Elbow Making Machine from Preda Machine is an indispensable asset for any duct fabrication facility.

With its specialized design for processing galvanized sheets into durable elbow joints, along with features like adjustable workbenches and hydraulic power operation,

it significantly enhances efficiency and precision in manufacturing.

Investing in this machine means equipping your operations with the capability to create high-quality, reliable connections between ducts,

contributing to the overall performance of HVAC systems.

Experience the benefits of superior design and advanced technology with the Hydraulic Elbow Making Machine

—where precision meets operational excellence in duct manufacturing!
