In the HVAC industry, the TDF (Table Duct Flange) machine plays a vital role in the manufacturing of ductwork.

It is specifically designed for forming flanges that are essential for connecting sections of ducting.

Preda Machine offers two primary types of TDF flange forming machines based on working requirements:

the single flange forming machine and the duplex flange forming machine.

Each type has distinct features, applications, and advantages that cater to various manufacturing needs.

Types of TDF Flange Forming Machines

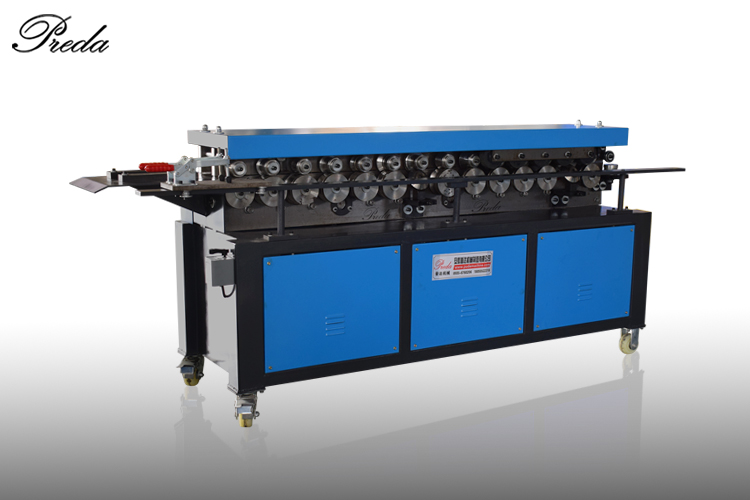

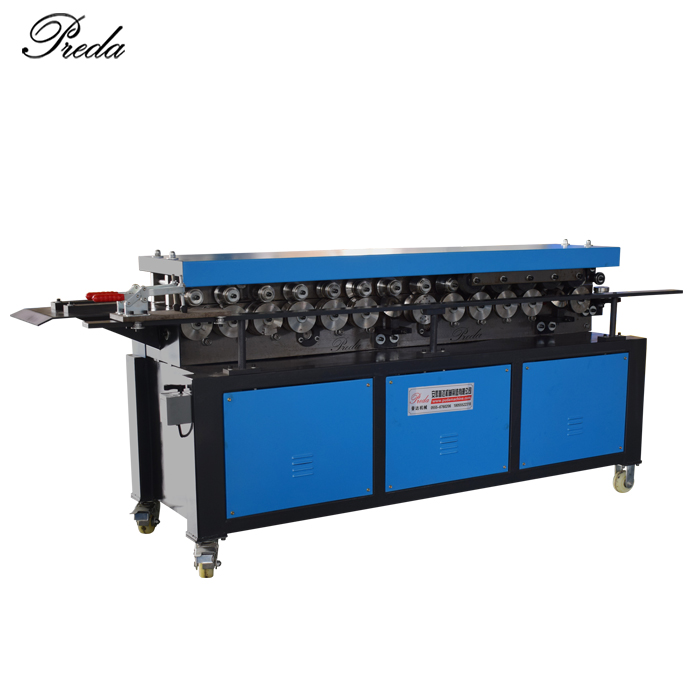

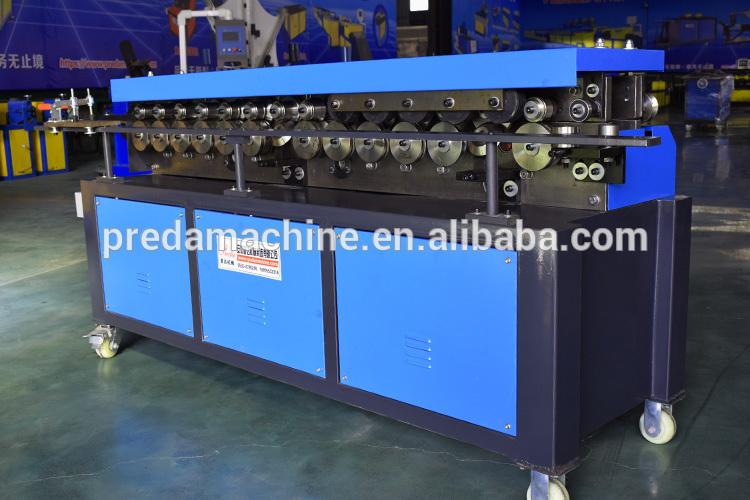

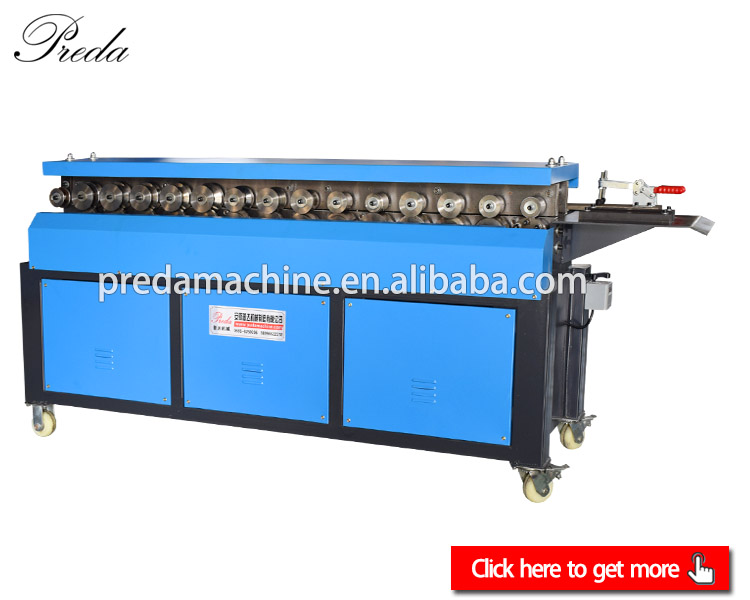

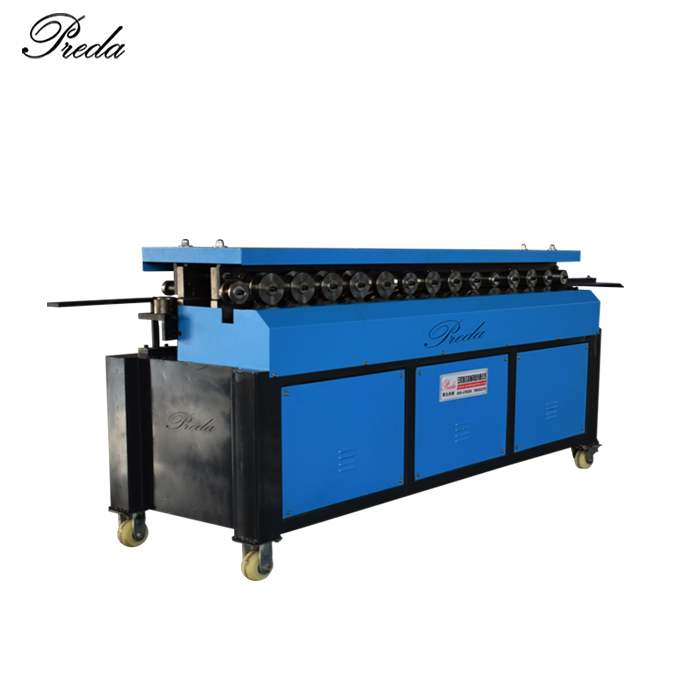

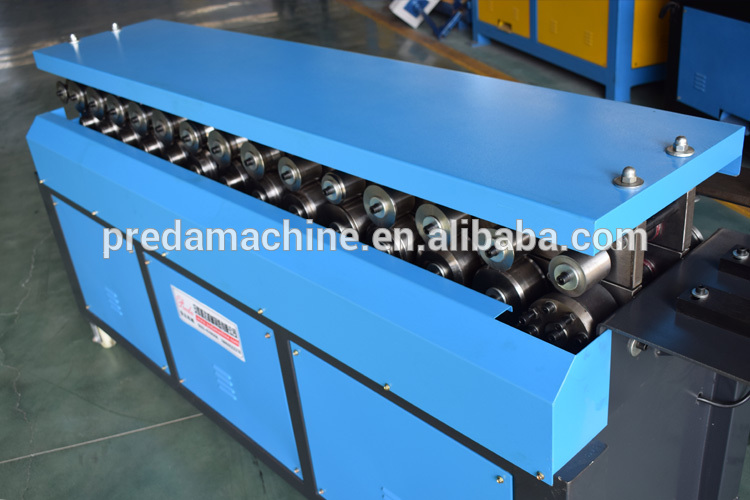

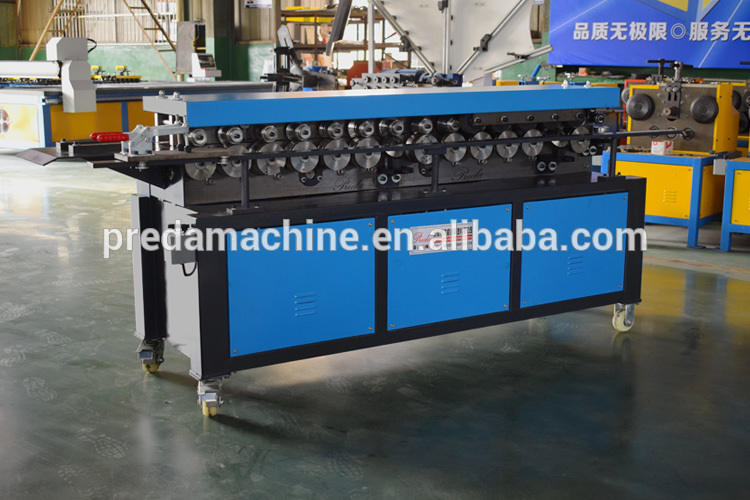

1.Single TDF Flange Forming Machine:

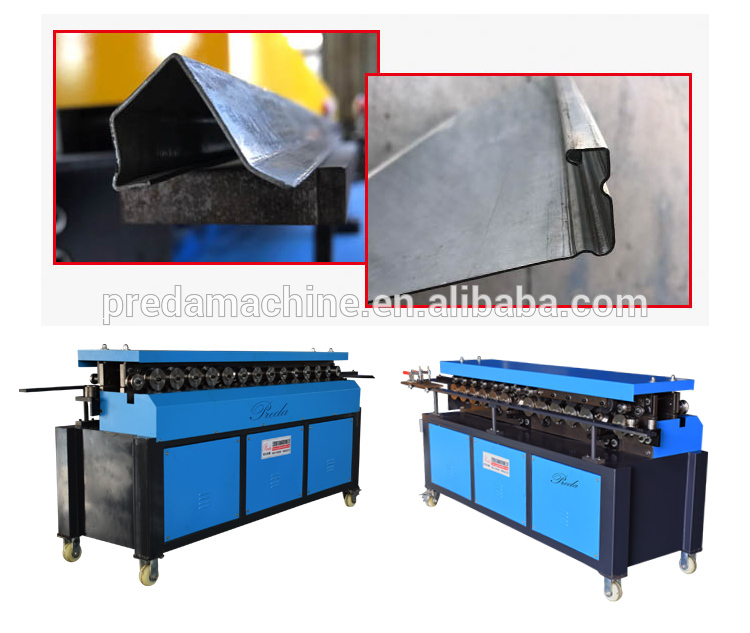

The single TDF flange forming machine is designed to form a flange shape on one side of the sheet while simultaneously creating a clip shape on the opposite side.

This functionality makes it a versatile option for fabricators who need to create secure connections in their duct systems.

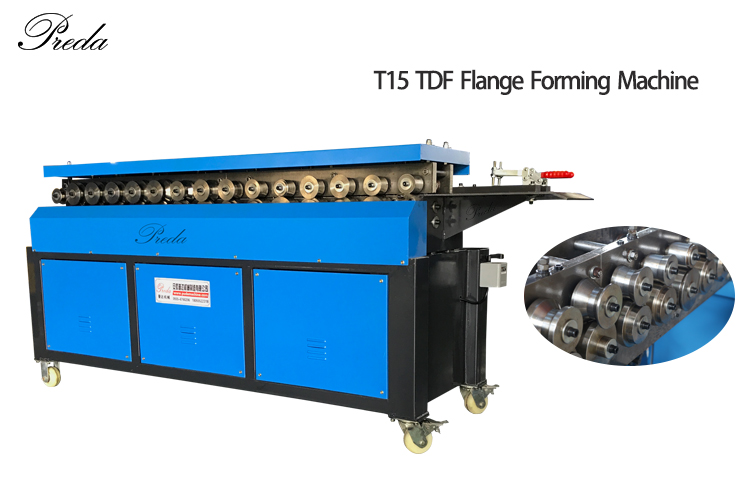

oModel Variants: The single flange machine is available in two models: T-12 and T-15.

o These models differ based on their capacity to handle different gauge materials and flange sizes.

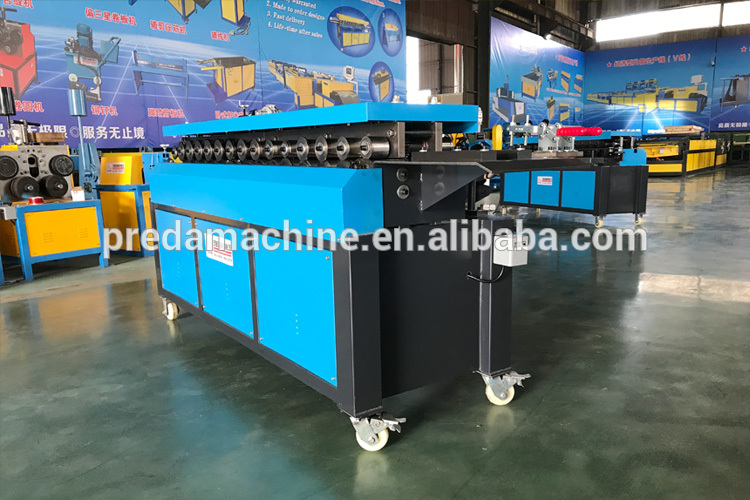

oPortability: One of the significant advantages of the single flange forming machine is its portability.

o This machine is not too heavy, and with built-in wheels, operators can easily move it around job sites as needed.

o Its stability and convenience make it popular for on-site applications where flexibility is essential.

oIntegration: This machine can be seamlessly integrated with other rectangular HVAC duct forming machines,

such as lock former machines, pneumatic TDF sheet metal folding machines, sheet metal grooving machines,

motor cutting machines, lock seam closing machines, and clip cutting machines.

o This compatibility allows for a complete duct production line that enhances workflow and efficiency.

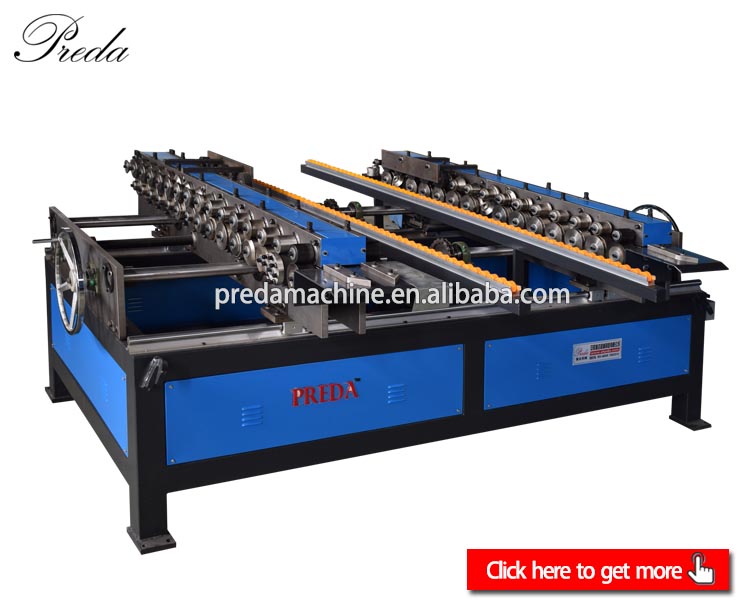

2.Duplex Flange Forming Machine:

The duplex TDF flange forming machine takes efficiency a step further by forming flange shapes on both sides of the sheet simultaneously.

This capability drastically reduces production time, making it ideal for high-volume manufacturing environments.

oEfficiency: By enabling dual-sided flange formation, the duplex machine allows manufacturers

to produce completed flanges at twice the rate of single machines, significantly improving productivity.

oCustomization: Customers can request the addition of clips, making the duplex machine a flexible solution

for different production requirements and duct configurations.

Maintenance and Operation

Regardless of the type of TDF flange forming machine used, proper maintenance is essential to ensure efficient operation.

Regularly adding lubricating oil and checking the moving parts help maintain the machine's performance and extend its service life.

Operators should be trained in both the operation and maintenance procedures to optimize efficiency and minimize downtime.

The TDF machine is an indispensable tool in the fabrication of HVAC ductwork, enabling manufacturers to achieve high-quality,

reliable flange connections necessary for efficient airflow.

Whether choosing the single flange forming machine for its portability and convenience

or the duplex flange forming machine for enhanced production capacity,

Preda Machine offers versatile solutions to meet a wide range of manufacturing demands.

Investing in a TDF flange forming machine streamlines the duct production process,

ultimately contributing to better HVAC system performance, reduced labor costs, and increased overall efficiency in fabrication.

With the right TDF machine from Preda Machine,

you can optimize your duct manufacturing operations and ensure high-quality results in every project!
